Product Overview

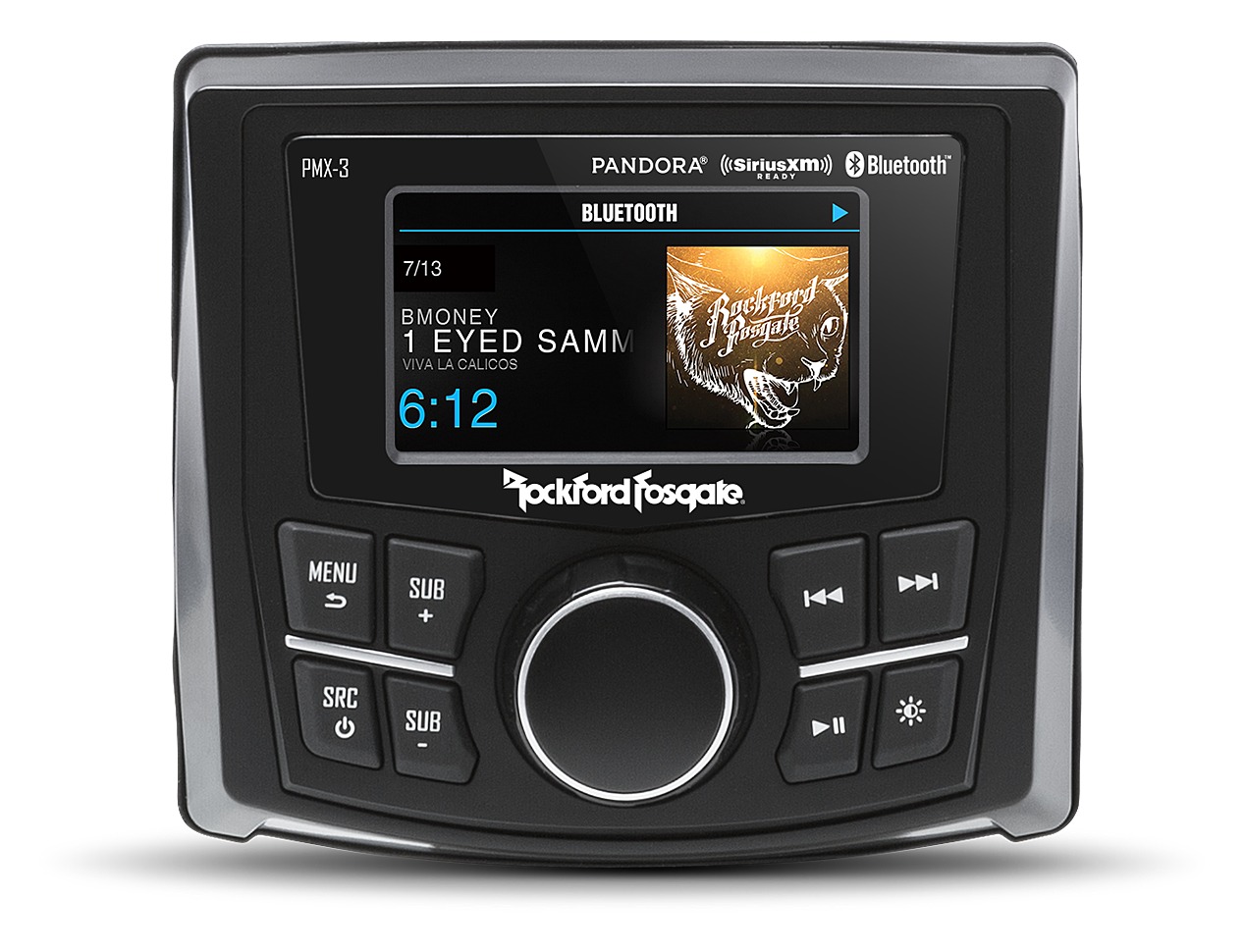

Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7″ Display

Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7″ Display

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7″full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio streaming with album art support, this unit becomes a true command center of any system. Output flexibility comes with a 4×50 @ 2ohm internal amplifier or front and rear/sub output RCA’s allowing the addition of aftermarket amplifiers for more power and output.

Features a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you’ll ever need.

Features:

• • 2.7″ Full color Thin Film Transistor display
  • SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
  • Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
  • Integrated voltage gauge w/ low voltage alert
  • Wired remote ready (up to 3 remotes)
  • Two-piece mounting system to secure panel to mounting surface
  • Front Panel Sub Control
  • Upgradeable Firmware and Bluetooth Software via USB
  • IPX6 Marine Grade for prevention of water intrusion
  • ASTM: B117 Salt Fog & D4329 UV Exposure Tested
  • Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
  • Internal power amplifier 4x45W 2Ω stable
  • Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
  • Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
  • Made for iPhone apple certified
  • Bluetooth streaming audio (A2DP) protocol version 1.4 installed
  • Rear USB With 1A Charging Only
  • Rear AUX-In (L/R)
  • Simple Secure Pairing (SSP)
  • Display album art from connected iPhones on the radio display
  • Folder browsing via BT connected iPhones
  • Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
  • Selectable high pass and low pass crossover points for each zone
  • Selectable crossover slopes of 12dB or 24 dB for each zone
  • Adjustable input gain for each source
  • Waterproof Rotary Encoder Volume Control
  • Tactile convex buttons for easy identification
  • White LED Button Illumination
  • Wired and front panel illumination control
  • Wet Bonded Display
  • Epoxy coated circuit board for water resistance
  • Direct composite video input connection
  • External trigger input to activate reverse camera mode
  • Day/Night display mode

Specifications:

• • Power output 25W x 4 @ 4-Ohm RMS / 50W x 4 @ 2-Ohm Peak
  • Speaker impedance 2-Ohms
  • Frequency response 20 Hz – 20 kHz
  • Media player audio format compatibility MP3 / WMA / FLAC
  • Pandora internet radio
  • SiriusXM-Ready
  • USB charging
  • Bluetooth 3.0+ EDR, A2DP 1.3
  • Apple/Android compatible (limited functionality on Android)
  • AUX input
  • Android Compatibility Bluetooth Only
  • USB Capacity 32Gb max
  • USB Version 2.0
  • USB output current 1A
  • Compatible remotes: PMX-1R / PMX-0R
  • Operating voltage 10.5 V – 16 V
  • Display size 2.7” color TFT
  • Back panel cutout 3″ (77mm)
  • Fuse rating 20 A
• Notes: See fitment for compatibility
