About This Product

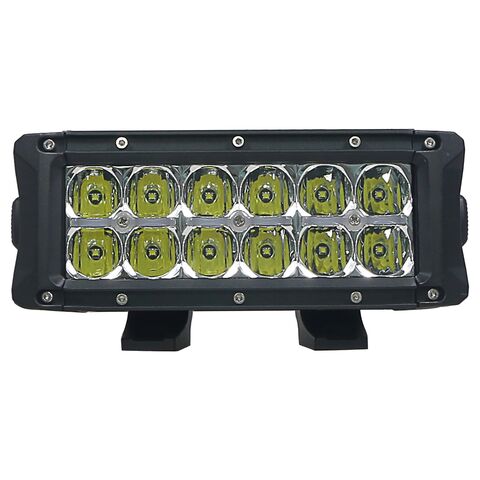

Open Trail DRL 7.5″ LED Light Bar Kit (7.5″)

Open Trail DRL 7.5″ LED Light Bar Kit

Open Trail DRL LED Light Bars pack a powerful driving light with a second setting for daytime running. Open Trail uses a combination of spot and flood reflectors to cast a beam that is excellent for lighting up long distances. A wide beam is cast outwardly to light up ditches, rocks and immediate surrounds. A second, focused beam pattern is cast down the trail for high speed visibility using the bar’s center-mounted spot reflectors. With the daytime running feature, the lights can be set to run at a much reduced power draw during the day to add conspicuity and visibility to other trail users – increasing safety. Open Trail’s rugged light assemblies feature aluminum housings, heavy-duty polycarbonate lenses, integrated heat sinks and an IP67 certification against dust and moisture. The high quality LED elements are sourced from Cree Lighting – a leader in LED technology.

Specifications:

• Size: 7.5″: Watts: 36W, LEDs/bulbs quantity: 12, Voltage: 12V, Raw lumen output: 3240, Mounting width: 10.67″

Features:

• Dual row LEDs with daytime running light feature
• Combined spot and flood reflectors create perfect driving light beam pattern:
• Spot reflectors to give a more focused beam pattern to light up at long distances
• Flood reflectors give more usable light over a short distance for rocks crawling, backup lights or work areas
• IP67 rated for dust and weather resistance
• Efficient, high intensity LED technology supplied by Cree Lighting Technologies
• Heavy duty polycarbonate lens and aluminum housing
• Black light housing and mounting hardware
• Integrated heat sink
• Daytime running feature adds visibility with a very low power draw
• Includes mounting brackets, wiring harness and switch
• Light elements covered by 15 month limited warranty
• Universal fit
•

Part Numbers
