Wilwood Big Brake Kit

Genuine Wilwood brakes component. VEHICLE SPECIFIC. In stock, ships from USA. Part of the Brakes catalog at CG ATV & UTV Parts Shop.

10 in stock

Wilwood Big Brake Kit

Name: Wilwood Big Brake Kit
SKU: CGPART-0135
Price: 1478.58 USD
Availability: InStock

Sold by CG ATV & UTV Parts Shop — authorized distributor of Wilwood powersports parts in the USA.

Product Overview

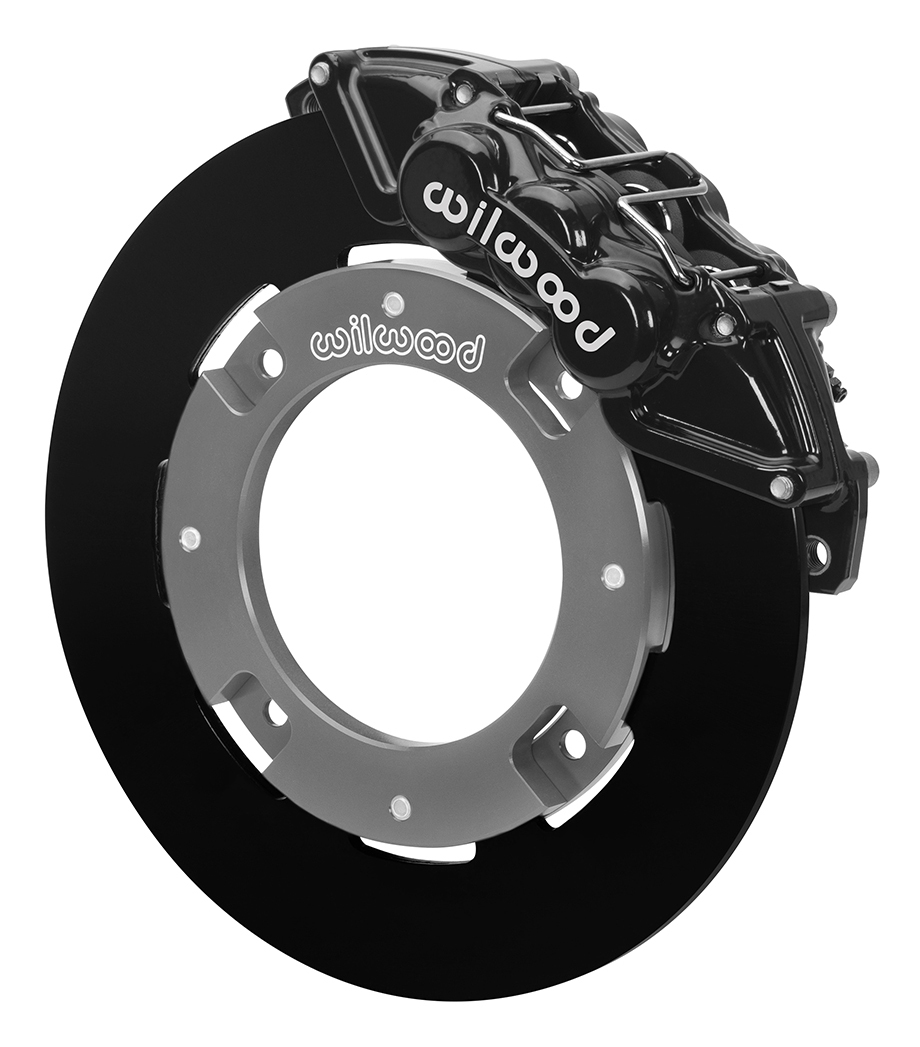

Wilwood Big Brake Kit

Wilwood Big Brake Kit features dynamically-mounted rotors and upgraded calipers your UTV / Side-by-Side. This kit features fixed mount multi-piston calipers with greater clamping force over stock, and larger diameter floating rotors for more brake torque and a harder bite, improving braking on higher-powered UTVs. Built with forged aluminum differential-bore four or six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel so you avoid that squishy pedal. The high-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion and the dynamic mounting reduce thermal stress and prevent piston knockback from rough terrain.

Features:

Dynamically-mounted rotors
Fixed mount multi-piston calipers
Forged aluminum differential-bore four and six piston calipers
High-friction steel rotors
Black Electro Coat rotor surface finish
Powder coated calipers for durability
Includes BP-10 medium friction pads
Minimum required wheel diameter of 14 Inches
Sold as a pair (front set and back set sold separately)

Includes:

2 Forged aluminum differential-bore calipers
2 Larger diameter floating rotors
2 sets of brake pads
Mounting hardware

Specifications:

Front Calipers
Piston Count: 6
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.00
Piston Area (In2): 2.27
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In2): 6.36
Brake Pad Volume (In3): 2.1
Pad Compound: BP-10
Front Rotors
Surface Finish: Black Electro Coat
Material: Steel
Outside Diameter (in): 11.25
Width (in): 0.25
Vane Count: Solid
Design Type: Solid
Bedded: No
Dynamically Balanced: No
Rear Calipers
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 0
Piston Area (In2): 1.98
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In2): 6.36
Brake Pad Volume (In3): 2.1
Pad Compound: BP-10
Rear Rotors
Surface Finish: Black Electro Coat
Material: Steel
Outside Diameter (in): 11.25
Width (in): 0.25
Vane Count: Solid
Design Type: Solid
Bedded: No
Dynamically Balanced: No

Key Specifications

Attribute	Detail
Brand	Wilwood
SKU / MPN	CGPART-0135
Category	Brakes > Brake Kit
Condition	New
Availability	In Stock — Ships 1–3 Business Days
Price	USD $1556.4

Fitment & Compatibility

VEHICLE SPECIFIC

Need help confirming fit? Our technical staff can help at our contact page.

Installation & Use

Installation complexity varies by application. For most bolt-on components, a basic socket set, torque wrench, and the vehicle’s service manual are sufficient. If you need detailed torque specs or wiring diagrams, refer to the manufacturer’s documentation or consult an authorized service center.

OEM-replacement parts should be installed following factory service intervals. Aftermarket performance parts may require additional setup, such as tuning or calibration — always verify compatibility before installation.

Browse our full Brakes catalog for complementary components and upgrade packages.

Safety Standards & Compliance

All products listed on this store are sourced from authorized distributors and meet applicable SAE and ANSI standards where relevant. Electrical components comply with UL requirements for powersports applications. Brake components sold here meet or exceed OEM friction specifications as independently verified by the manufacturer.

For regulatory standards governing off-road vehicle components, refer to the SAE International standards library and the U.S. Consumer Product Safety Commission.

About Wilwood

Wilwood is a recognized name in the powersports industry, with a product line engineered for ATV and UTV riders who demand performance and durability. Their manufacturing processes prioritize tight tolerances, quality materials, and field-tested designs. As an authorized Wilwood retailer, CG ATV & UTV Parts Shop offers genuine products with full warranty coverage.
